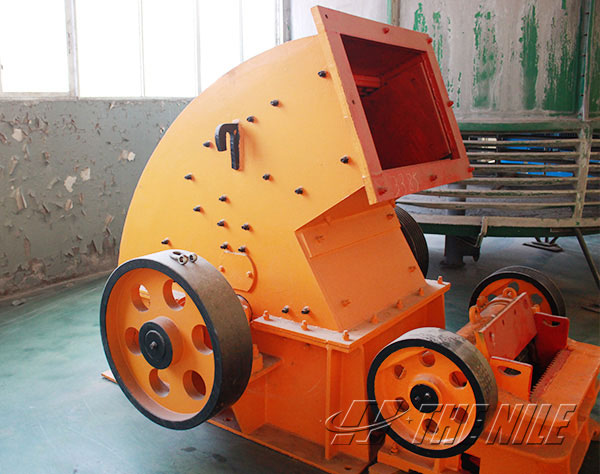

Hammer crusher
If you need help please contact us!
Factory direct sales:Yes
Delivery method:Sea/land
Caractersticas Diseo nico, estructura compacta. El diseo general es estticamente agradable, y la estructura del cuerpo del martillo est sellada para resolver el problema de la contaminacin por polvo y las fugas de cenizas del cuerpo en la p
- +8615137168510
- 7*24 hours service hotline
product feature（Simple structure, large crushing ratio, high production efficiency, etc.）

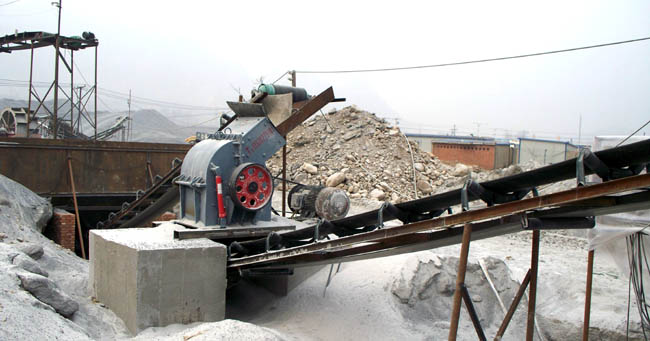

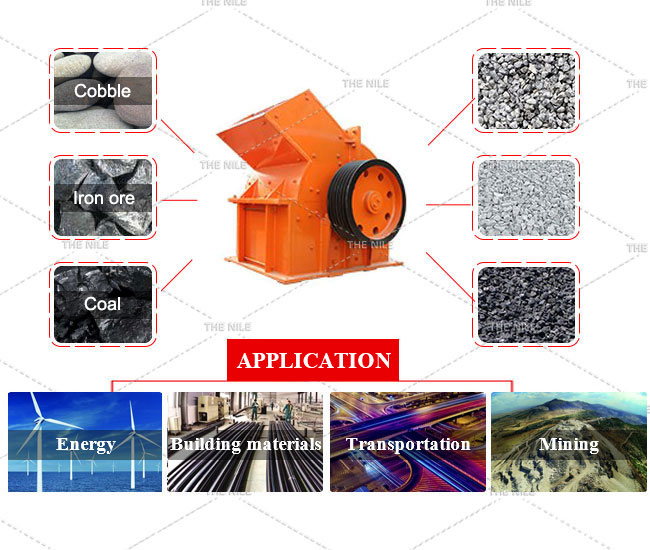

This machine is suitable for crushing medium-hardness materials such as limestone, slag, coke, coal and so on in cement, chemical, electric power, metallurgy and other industrial departments. It has the advantages of simple structure, large crushing ratio and high production efficiency, which can break both dry and wet forms. Hammer crusher can adjust grate gap in order to get different sizes of outputs, which meets the needs of different users.
This machine is suitable for crushing medium-hardness materials such as limestone, slag, coke, coal and so on in cement, chemical, electric power, metallurgy and other industrial departments. It has the advantages of simple structure, large crushing ratio and high production efficiency, which can break both dry and wet forms. Hammer crusher can adjust grate gap in order to get different sizes of outputs, which meets the needs of different users.
Technical Data
| Model | PC400x300 | PC600x400 | PC800x600 | PC1000*800 | PC1200*1000 |
| Diameter /mm | 400 | 600 | 800 | 1000 | 1200 |
| Length /mm | 300 | 400 | 600 | 800 | 1000 |
| Speed r/min | 1100 | 980 | 980 | 980 | 650 |
|
Max Feeding Size /mm |
<200 | <250 | <250 | <300 | <400 |
| Output Size /mm | 5-10 | 5-15 | 5-20 | 5-20 | 5-25 |
| Capacity t/h | 3-5 | 6-10 | 30-60 | 60-100 | 100-200 |
| Power /Kw | 11 | 18.5 | 55 | 75 | 110-132 |
| Hammer /个 | 16 | 20 | 24 | 30 | 18 |
|
Over dimension L*W*H/mm |
2000*850*1000 | 2010*1081*1240 | 2280*1500*1705 | 3072*1720*2121 | 1900*2025*2155 |
