Gravity equipment 6s shaking table for gold zircon sand ore recovery

Shaking table is also called table concentrator, its a gravity separation equipment for fine minerals . 6s Shaking table is very practical in metallic minerals, widely used in Gold, Silver, Columbium , Iron, Chrome,  Zircon, Lead, Zinc, Mercury, Copper, Aluminum etc. Ores production and refining .
The Nile’s shaking table can produce particles size from 0.5-2 mm; the deck is designed for recovering fine materials 0.074-0.5 mm; the slime deck is for recovering super extremely fine materials 0.037-0.074 mm.

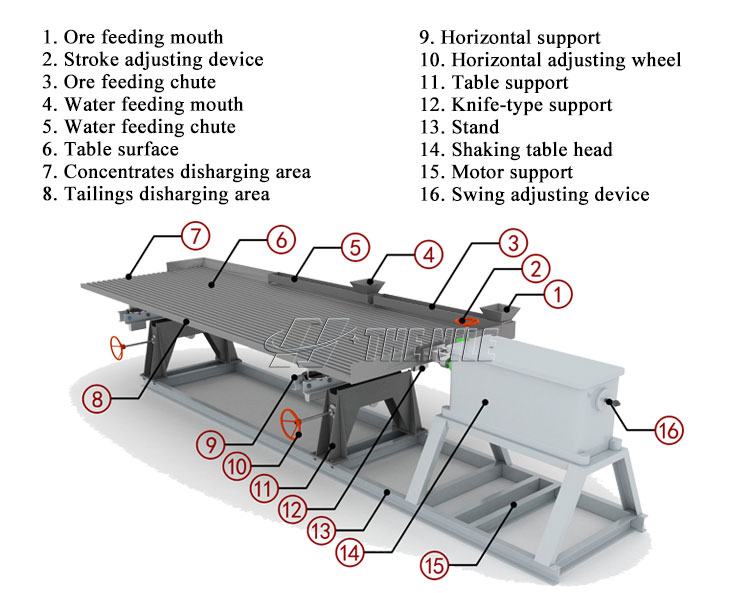

Shaking table working principle
Shaking Table use the combined action of the specific gravity difference of minerals, alternating movement of bed surface, and transverse oblique water flow and riffle to allow loose layering of ores on the bed surface And fan-shaped zoning.
Main features of 6s shaking table:
1.High recovery and concentration ratio
2.Simple operation and easy install
3.Deck constructed of fiber glass
4.Many types of decks to choose
5.Working life is long
6.Stroke length and speed adjustable
Technical data of 6s shaking table:
Model NO. 6S Tbele Size 4520*1850*156mm
Stroke 8-36mm Motor Power 1.1kw
Time/min 240-380 Dimension 5630*1850*900mm
Landscape 0-5° Table Weight 650kg
Material Feeding Size Mine Density Flushing Water Capacity(t/h)
Coarse Sand 2-0.5mm 10-30% 0.5-3.5t/h 1-2.5
Fine Sand 0.5-0.074mm   0.8-1.2
Ore Mud 0.0774-0.037mm   0.3-0.6
