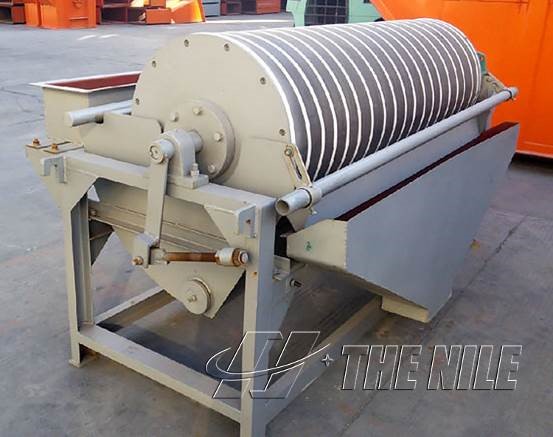

Introduction to Wet Magnetic Separator

Magnetic separator is one essential equipment in the ore dressing process which can separate raw materials with different magnetic rigidities.It is mainly used for screening the magnetic and non-magnetic material from the mineral powder and mineral pulp.The magnetic system of a magnetic separator is a compound of fine ferrite material and rare earth magnets.The average magnetic induction intensity of the surface of the cylinder is 100~600mT.

Working Principle:
The pulp flows into the cell body from the pulp box,and under the water flow of the feeding spray pipe,the mineral grain will go into the feeding area of the cell body in the loose condition.In the magnetic field,the magnetic ore particles will have magnetic gathering and form magnet group or magnet chain which is influenced by the magnetic force inside the pulp and moves to the magnetic pole and finally is absorbed onto the cylinder.

Application of Magnetic Separator：
Magnetic separator is suitable for the wet magnetic separation of the materials whose granularity is below 3mm such as magnetite, pyrrhotite, calcined ore and ilmenite and can also be used for removing iron from the materials such as coal, non-metal ore,and building material.
Features:
1.simple structure;
2.Easy-open structure gives a convenient cleaning;
3.large handling;
4.easy to operate;
6.The number of axial magnetic can be adjusted in accordance with material characteristics.
7.easy to maintain.
8.This magnetic separator is suitable for processing various bulk materials and will not be blocked for its compact structure;
9.Low power;
10.It also has a disaggregating function for sticky and poor-fluidity powders;
11.A stainless steel machine and full-closed operation enable an easy clean;
12..Magnetic separator could working under high temperature.
